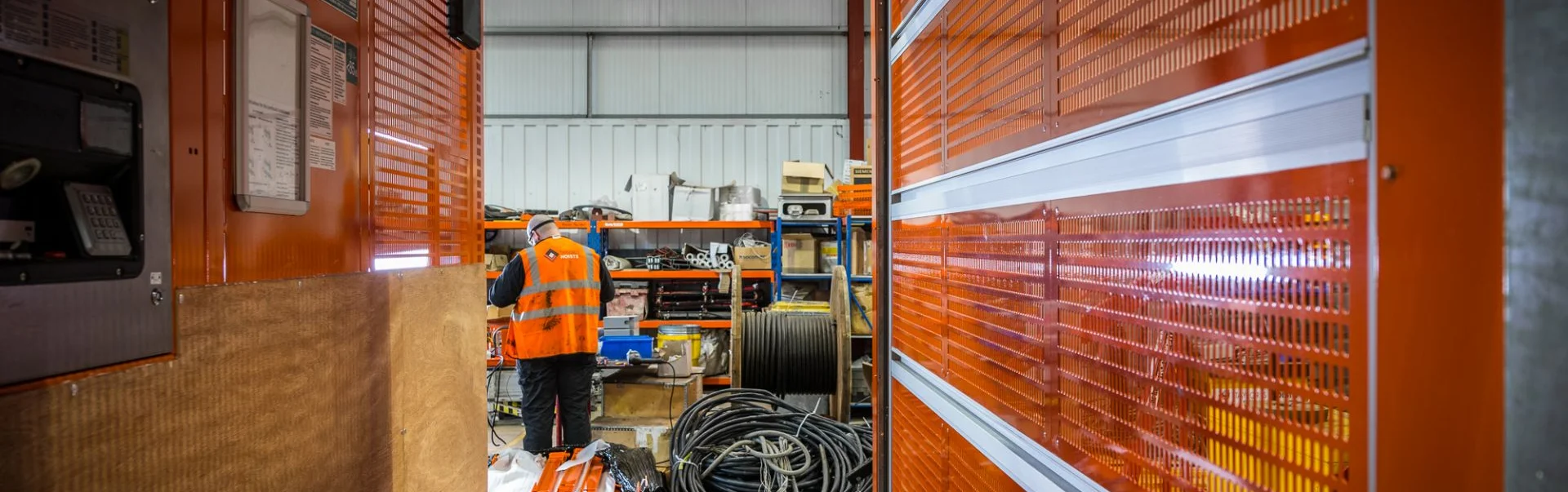

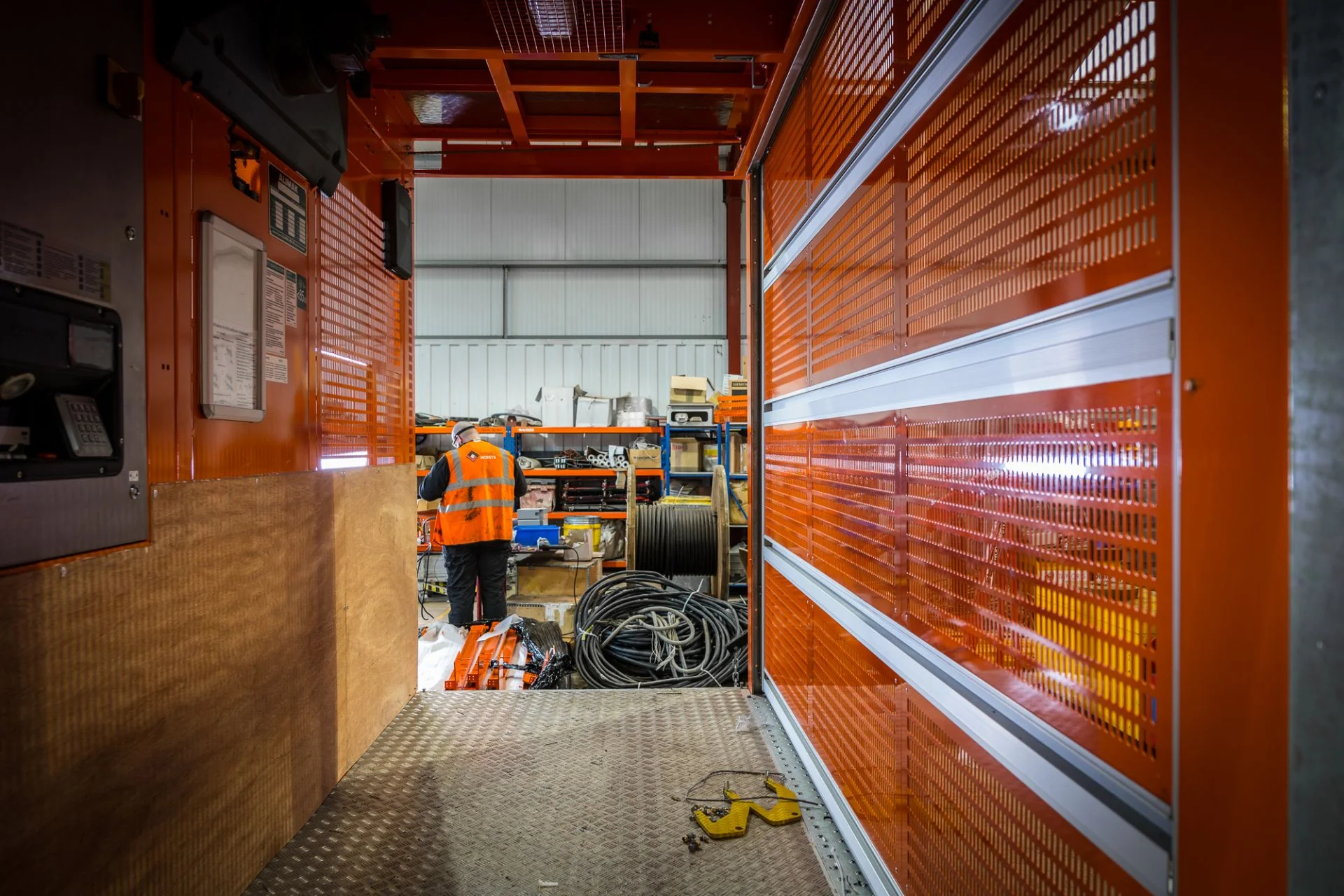

Extendable platform hoist for loads up to 1,200kg
Alimak CM is part of the C-20 access system. The platform is 1.4m x 2.0m. Payload capacity range from 1,200kg.
- Payload capacity 1,000–2,100 kg
- Speed 10–26 m/min.
- Max. lifting height 100 m (Increased lifting height on request)
- Car width (internal) 1.5–3.0 m
- Car length (internal) 1.5–6.0 m
- Motor control DOL
- No. of motors 1–2
- Safety device type GF
- Power supply range 380–480 V, 50 or 60 Hz, 3 phase
- Type of mast C-20, Tubular steel with integrated rack
- Length mast section 1.508 m
- Weight mast section with 1 rack 68kg
- Rack module 5
Downloads
For product data sheet, please click here
For general hoist specification, please click here.
